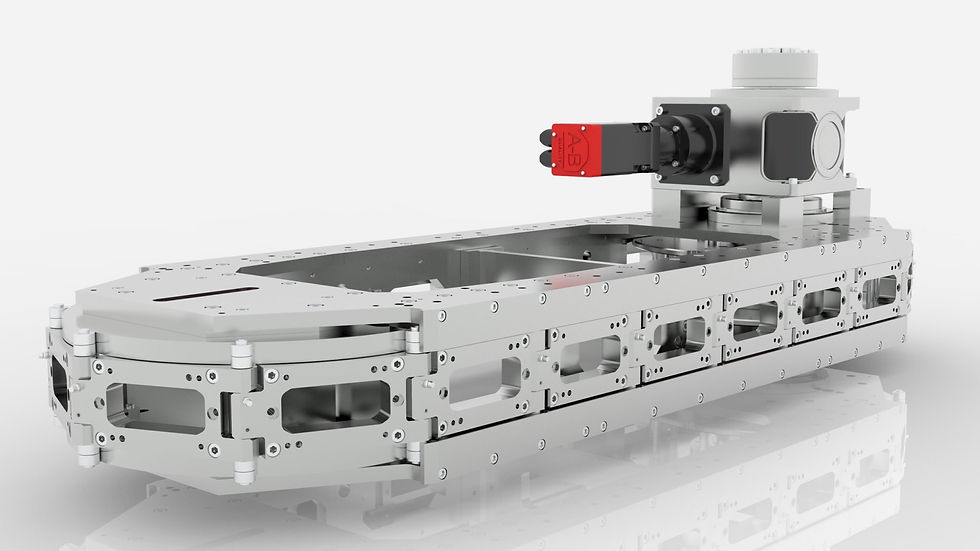

Unlocking Precision and Efficiency: A Deep Dive into Sankyo Automation's IC80 Series

In today’s fast-paced manufacturing landscape, precision and efficiency are paramount. At Sankyo Automation, we are committed to delivering solutions that meet these demands. Our IC80 Series Precision Link Conveyors exemplify this commitment, offering unparalleled accuracy and reliability for linear assembly applications.

Unmatched Precision and Speed

The IC80 Series is engineered to achieve feed pitch accuracy within ±0.1 mm (±0.0039 inches), ensuring consistent and precise positioning for your assembly processes. Capable of operating at high speeds, these conveyors enhance productivity without compromising accuracy.

Zero Backlash Design

A standout feature of the IC80 Series is its zero-backlash design. Each link is preloaded in the X, Y, and Z axes, eliminating any play or movement that could affect performance. This design ensures smooth and reliable operation, even under demanding conditions.

Robust Load Capacity

Each chain link in the IC80 Series boasts a static force capacity based on load distance from link face and the conveyor orientation that provide the strength needed to handle substantial loads. This robust construction makes the IC80 Series suitable for a wide range of assembly tasks, from delicate components to heavier assemblies.

Versatile Applications

The IC80 Series is ideal for linear inline assembly processes requiring precise positioning. Its modular design allows for reconfigurable lengths, accommodating various product sizes and production requirements. Whether serving as the main chassis for assembling multiple components or integrating into existing systems, the IC80 Series offers the flexibility and reliability you need.

Customizable Options

To meet diverse manufacturing needs, the IC80 Series offers several customizable options:

- Link Sizes: Choose from 80, 120, 160, and 240 mm (3.14, 4.72, 6.29, and 9.44 inches) link sizes to match your specific application requirements.

- Drive Mechanisms: Select between fixed motion indexing drives or programmable servo motor drives, depending on your operational needs.

Application Examples

1. Medical Device Assembly

The IC80 Series shines in the medical industry, where precision is critical. It is widely used for assembling:

- Syringe components

- Inhalers

- Diagnostic test kits

The conveyor’s zero-backlash design ensures reliable positioning for tasks like adhesive application or quality inspection, reducing defect rates and increasing output.

2. Automotive Component Manufacturing

The automotive industry requires robust and reliable assembly systems. The IC80 Series supports:

- Assembling gearboxes, transmissions, and electronic control units (ECUs)

- Handling heavier subassemblies like engine valve components or braking systems

Its high load capacity and precision operation make it ideal for these high-demand applications.

3. Electronics and Semiconductor Assembly

For delicate electronics and semiconductors, accuracy is essential. The IC80 Series facilitates:

- Printed Circuit Board (PCB) assembly

- Semiconductor module alignment

- Mobile device camera calibration

The programmable servo motor options allow precision indexing in these intricate processes.

4. Consumer Goods Production

The high-speed, flexible design of the IC80 Series makes it ideal for producing consumer goods such as:

- Complex multi-part items like razors or toothbrushes

- High-volume items like bottles, caps, or applicators

Its ability to operate at high speeds without sacrificing accuracy ensures seamless mass production and reduced downtime.

Innovative Engineering for Extended Service Life

Our innovative chain tensioning system and all-needle bearing design reduce vibration and eliminate chain stretch, extending the service life of the conveyor. This engineering excellence ensures that the IC80 Series delivers consistent performance over time, providing a reliable solution for your assembly line.

At Sankyo Automation, we are dedicated to advancing motion control technology to meet the evolving demands of the global market. The IC80 Series Precision Link Conveyors embody our commitment to quality, innovation, and customer satisfaction.

For more information or to discuss how the IC80 Series can enhance your manufacturing processes, please contact our team of experts. We are here to provide solutions tailored to your specific needs.
